UNIQUE POLYURETHANE FOAM SEAT FULLY SEALED IN THE GLOBAL MARKET
This is a
kit that contains everything needed to make customised seats
SEAT CONFORMS TO FIA HOMOLOGATION SPECIFICATIONS:
FIA- STANDARD FOR FORMULA ONE AND SPORTS CAR HEADREST
MATERIALS 02-11-2010
FIA - FLAME RESISTANCE TEST FOR THE FOAM MATERIALS EN
ISO 15025:2003
SEAT COVERING FABRIC FIRE-RESISTANT BAG UNI ISO 3795:1992
Totim® Racing has revolutionized how custom-fit "poured" racing
seat inserts are made!
These unique kits are fully sealed - no measuring and no
mess -
no
additional covering required and can be fitted in as little as 30 minutes with
no other tools required
Not only
does the foam absorb impacts during an accident, but the material also serves
to offer total support to the bodyduring racing
Each kit
consists of pre-packaged, pre-measured 2-part polyurethane that expands when
mixed. You never touch the chemicals!
Just break the seal between the two
portions and knead the bag until the expanding foam causes the inner pouch to
pop (about 50 seconds)
Put the bag in the car and let it expand for another
40-50 seconds
Finally, put the driver in the car and let the bag expand to fit
the driver - 15 to 20 minutes, depending on kit size
The insert is ready for
use or trimming after 40 minutes of cure time
SEAT FITTING OVER A VAST RANGE OF CHAMPIONSHIPS INCLUDING F1, F2, F3, LMP3-4, BTCC, F4, NASCAR, FIA MASTERS, RADICAL, CATERHAM, GP2, GP3, WTCC, GT, WRC, INDYCAR AND PROTOTYPES LIKE LMP
THE ADVANTAGES OF TOTIM® Racing Foam Seat
Foam Seat
polyurethane
Fully Sealed
with microfiber polyester black color
Foam Seat insert is not shrink and break over time Foam Seat offers insulation from vibration & energy absorption Foam Seat reduces fatigue & improves performance
The foam seat shapes and molds around the driver. To make a seat with polyurethane foam in a fully sealed bag after the activation of the foam place the seat cushion in the cockpit or seat shell. Seat the racing driver and form the shape to the driver’s needs, comfort and support.
Choose your size based on the amount of space between the seat and the racing driver. The better the existing seat fits the driver, the smaller the cushion
you need.
For best results we recommend using too large of a cushion rather than too small.
Excess material at the edges can be cut to obtain the necessary shape for the racing driver.
The TOTIM® Racing FOAM SEAT provides the driver an individual seating solution for the optimum racing position, improved performance and driver safety.
For the International Distributors contact us

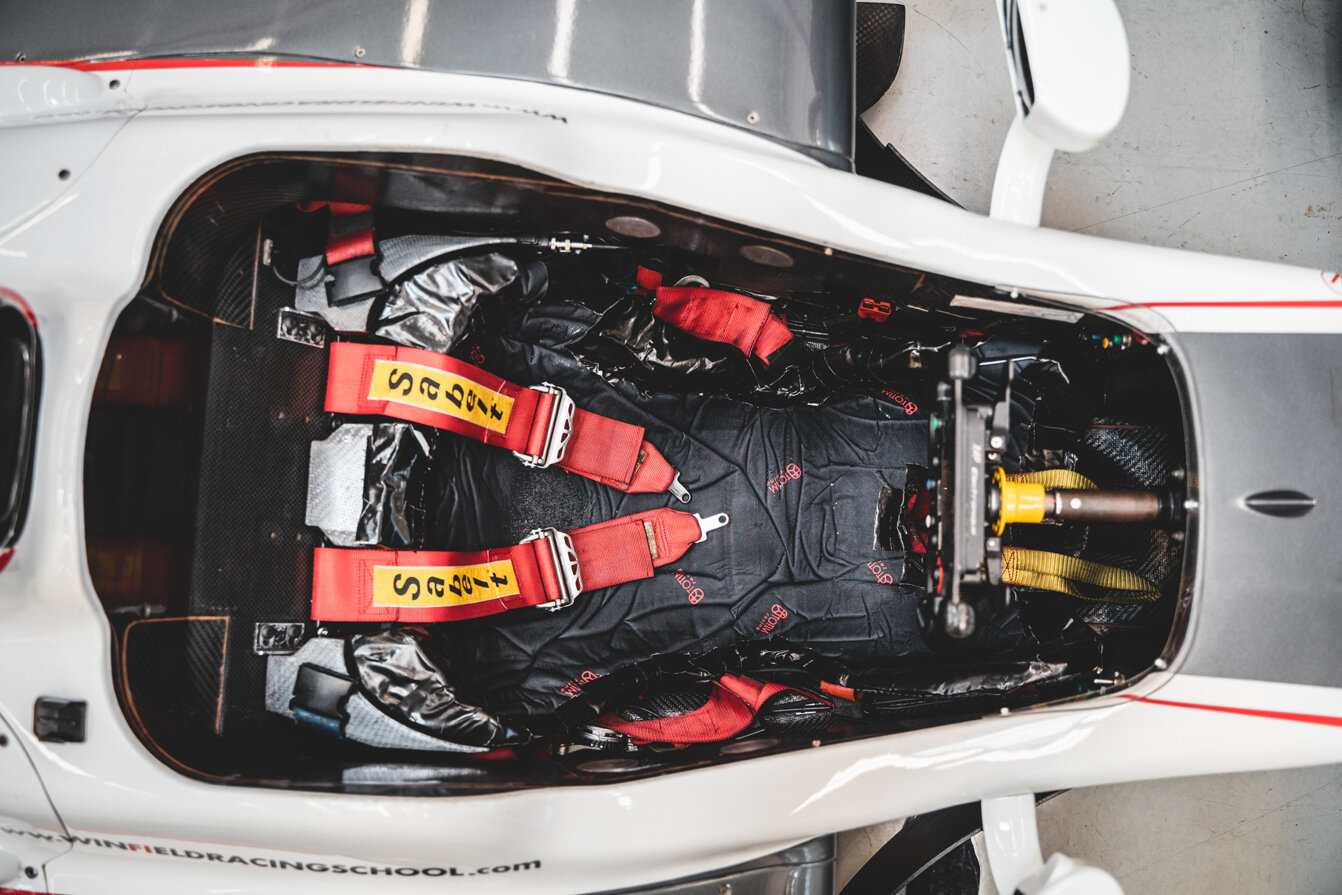

Alexandre Janneau - WINFIELD RACING SCHOOL
"After 15 years of seat with the classic method or microbeads, thank you for having developed an easy method of execution. Our photographer had fun taking pictures of your seat"
The Lola T212 was winner of the Peter Auto Historic 2023 Championship with the driver Serge Kriknoff using the TOTIM® Racing

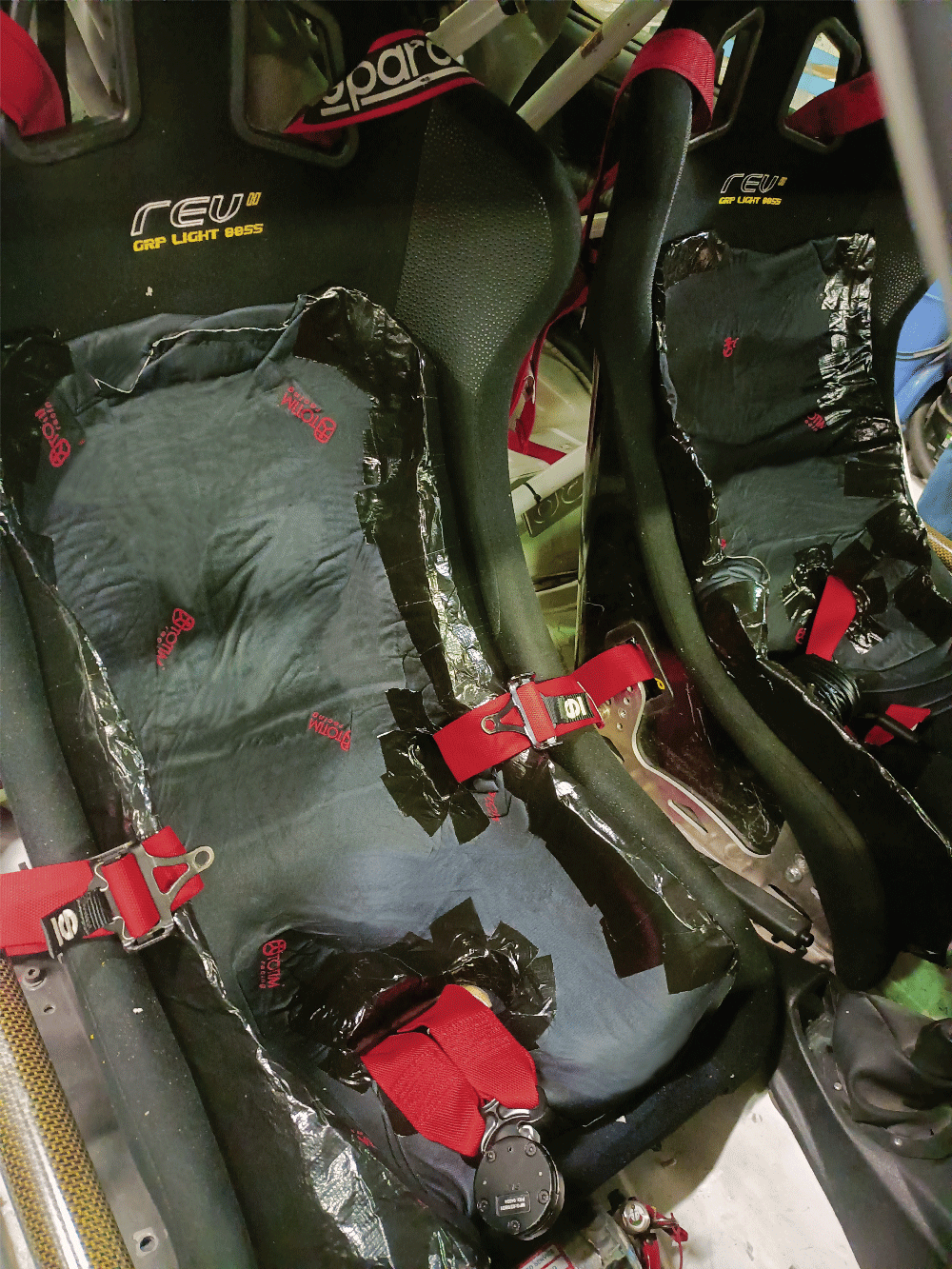

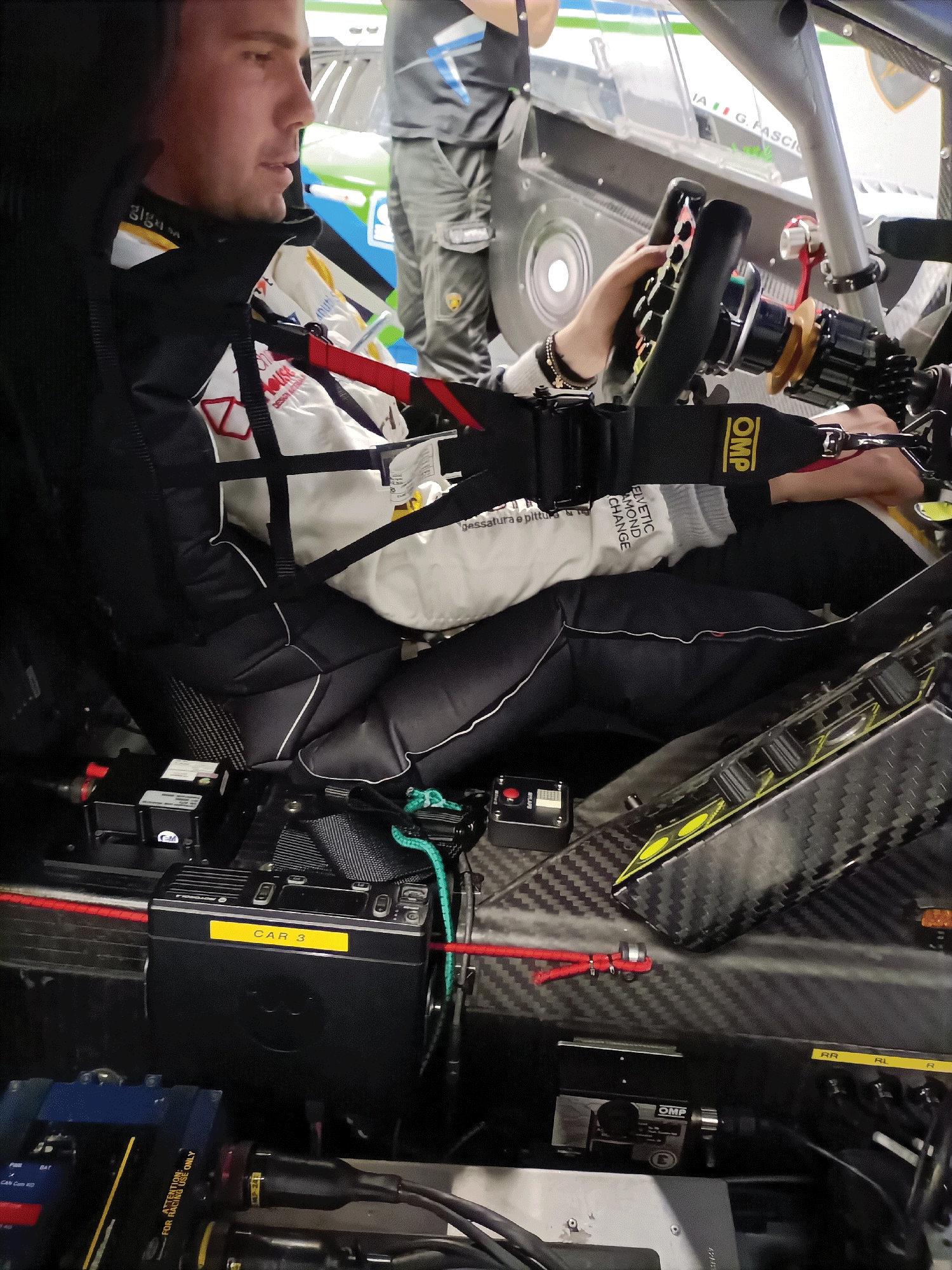

The TOTIM® Racing Kit foam seat with F4, GT and WRC
